Description

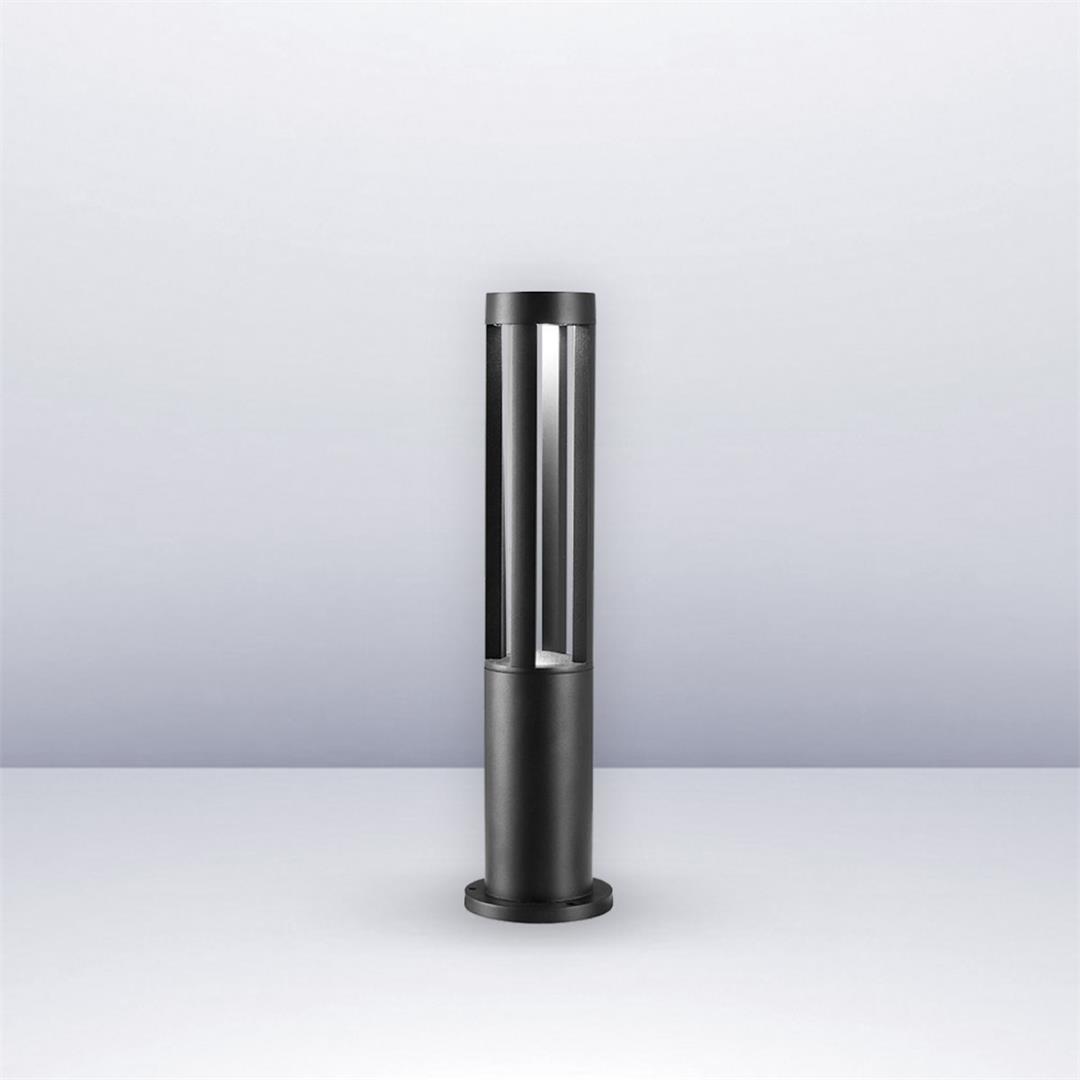

Outdoor Bollard Light
Die Cast Aluminum Housing
Pre-treated Powder Coating for corrosion resistance
Watertight Silicone Gasket Used For Water Resistance
Clear Toughened Glass
SS304 Grade External & Internal Fasteners used for corrosion resistance
Built In IP68 potted power supply
Protection: IP65
USP
*Four Way Pattern Light Distribution on outdoor landscape passage
*Earthing Safe for shockproof connection
*Separate Driver & Source Compartment For Easy Servicing
*Easy Installation on the ground
Mechanical Details
| Mounting | Outdoor |
| Housing Material | Aluminum |
|---|
| Finish | Black / Graphite Grey
|

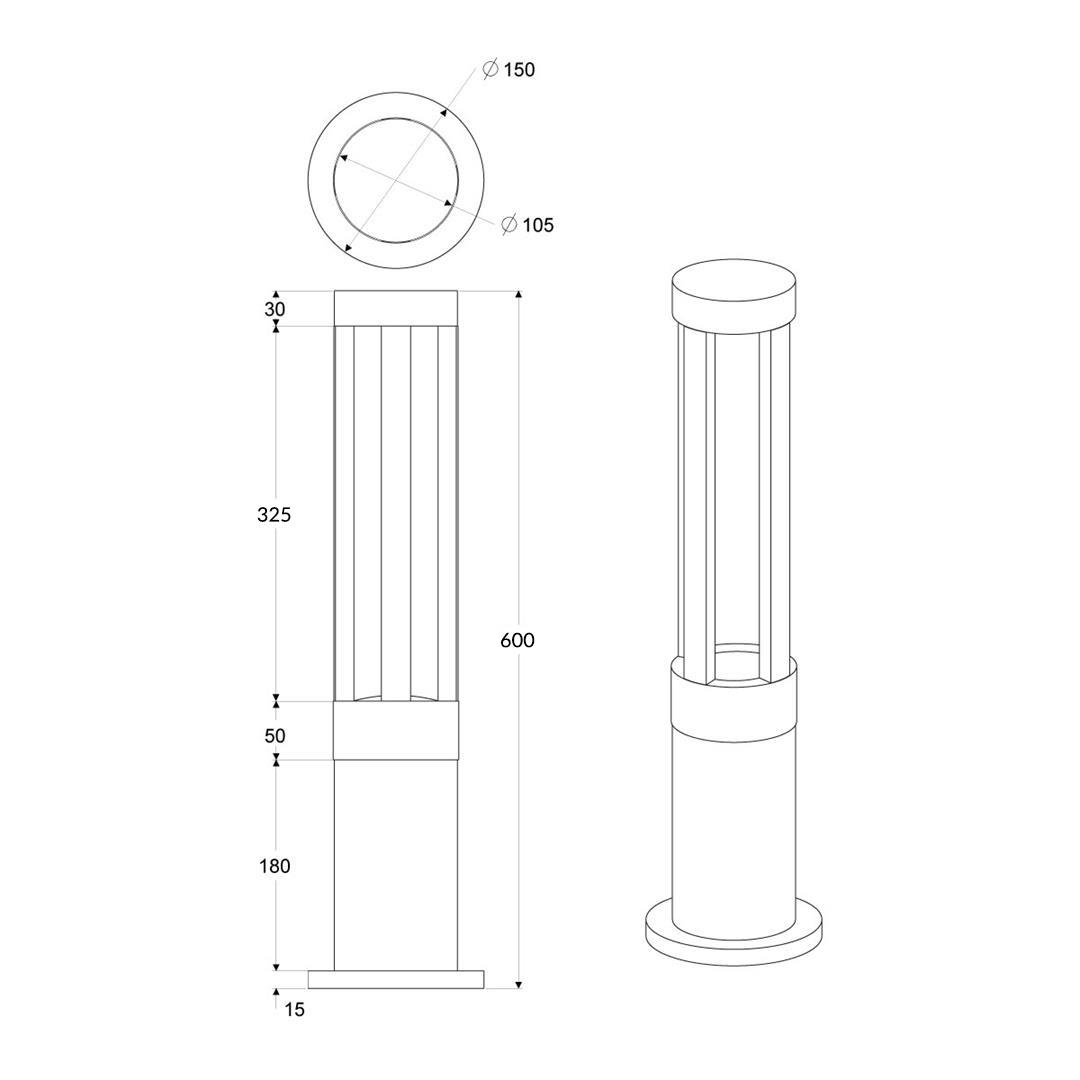

| Size | ø105XH600mm (Bottom Plate - ø150x600mm)
|
|---|
| Glass | Clear Toughened Glass
|
|---|
Reflector
| White Polycarbonate Reflector
|
| Fasteners | SS 304 grade fastener |
|---|
| Cable | High current carrying 3 core cable |
|---|
| Cable Entry | Single Cable Entry |
|---|
| Power Supply | Inbuilt IP68 potted power supply unit |
|---|
| IP Rating | IP65 |
|---|
Connector
| IP68 Connector
|
| Weight | 1.8Kg |
|---|
Technical Details
| Light Source | COB |
| Input Power | 12W |
| Color Temperature | 3000 / 4000K |
| Lumen | 1004/1020 LM |
| Efficacy | 84 / 85 LM/W |
| Beam Angle | 72°
|
| Input Voltage | 220-240VAC |
| Driving System | Constant Current |
| Dimming Type | ON / OFF |
|---|
| CRI | 90+ |
|---|
| MacAdam | <3 |
|---|
| Operating Temperature | -10 to 50°C |
| LED Life | L70 at 50000 burning Hours |
|---|
| Safety Class | Class I |
|---|
| System Warranty | 1 Year |
|---|
H- 72°
3000K
4000K
3000K
4000K
3000K
4000K
Downloads
| Model | Watt | Color | Beam Angle | Color Temp | Data Sheet - PDF | Luminaire Data - IES |
BV156012BL30CC
| 12 Watt | Black
| 72°
| 3000K | PDF | IES |
BV156012BL40CC
| 12 Watt | Black
| 72°
| 4000K |
|
|
BV156012GG30CC
| 12 Watt | Graphite Grey
| 72°
| 3000K |
|
|
BV156012GG40CC
| 12 Watt | Graphite Grey | 72°
| 4000K | PDF | IES |
Downloads
PDF
IES
3D
Accessories
